Universal display unit UZJ UNI

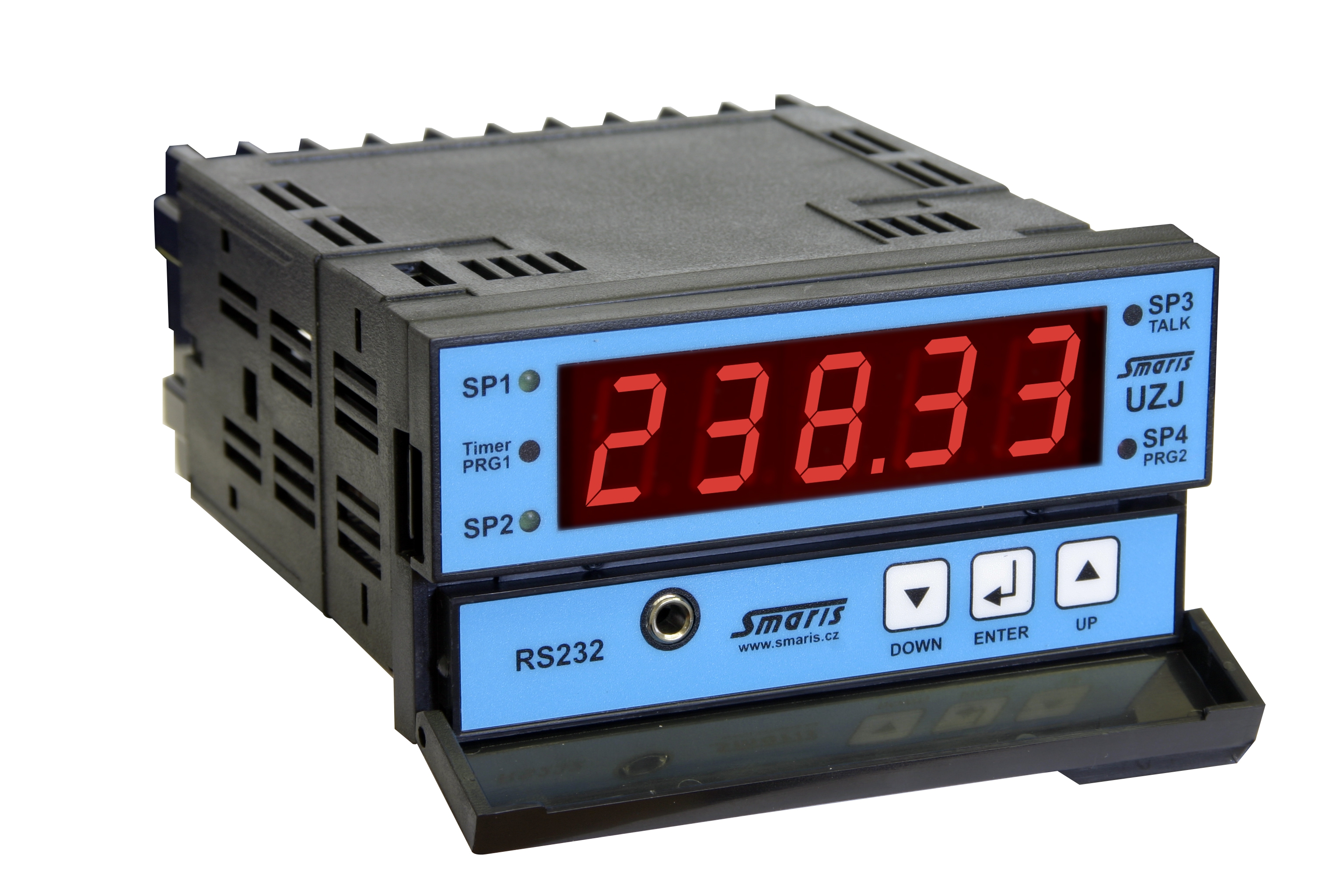

The UZJ model is a 5 digit panel process monitor designed for direct projection of analog signals or sensors
(Pt, Ni, Thermocouple).
The instrument is based on an 8-bit processor and very precise A/D converter (16-bit), that secures high accuracy, stability and easy operation of the instrument.
In basic version the instrument is designed for simple measurements.
In version with single, dual, third or fourth comparators are on the outputs relays.
All setting is made by three control keys.
It is possible make version with 16-bit analog output (0…5V, 0…10V, 4…20mA, 0…20mA).
It is possible make version with datalogger and RTCC.
Technical parameters
Technical data
Working temperature -20…60 °C
Power supply 230VAC, 50/60Hz ± 10% 5VA
19…30VDC/max 200mA
Covering IP40, upon request IP65 (front panel only)
Mechanic properties
Dimensions 98 x 49 x 115 mm
Panel cut 91 x 45 mm
Measuring Range TAB1
EMC EN 61 000 –4-2; -3; -4; -5 … level 3
EN 61 000 –4-6 … level 2
Instrument accuracy
Tempco : 50 ppm/°C
Accurancy : Pt Ni max. ±(0,1% + 0,1°C) – 4-wire sensor connection
max. ±(0,1% + 0,15°C) – 3wire sensor connection
Thermocouple E,J,K,L,T max. ±(0,1% + 0,15°C) – without CJC compensation
Thermocouple B,S,R,A max. ±(0,1% + 0,2°C) – without CJC compensation
R, potentiometer max. ±(0,1% + 50mW)
U max. ±(0,1% + 50mV)
CJC compenzation error: max. ±0,5°C
Rate: 3 measurements/s
Comparator: digital adjustable by control keys (hysteresis or window mode, trigger values and selectable delay)
Number of comparators: 1…4 relais (250VAC/4A)
Analog outputs
Type isolated, analog output corresponds with the input signal (0…5V, 0…10V, 0…20mA, 4…20mA)
Non-linearity 0,1% of range
Excitation: 24 VDC/50 mA, galvan. separated from power supply and input signal
